SST Crank Scale (360° protractor) & Stud Bolts (3 pcs.) set
![特殊工具 SST クランクスケール(360°分度器)&スタッドボルト付き(3本)](img/mar23012605.jpg)
![特殊工具 SST クランクスケール(360°分度器)&スタッドボルト付き(3本)](img/mar23012605_2.jpg)
![特殊工具 SST クランクスケール(360°分度器)&スタッドボルト付き(3本)](img/mar23012605_3.jpg)
![特殊工具 SST クランクスケール(360°分度器)&スタッドボルト付き(3本)](img/mar23012605_4.jpg)
特殊工具 SST クランク スケール(360°分度器)&スタッドボルト付き(3本)
code:mar23012605
¥13,200(¥12,000)
- SST
11,000x1 - SST
2,000x1
The 2023 new typed Crank Lock Plate is not merely for locking the crank. The Scale Plate (360° protractor) can be also attached for adjusting the camshaft/valve timing.
The scale has divisions especially for engine work.
It can be used for the camshafts at both sides of intake and exhaust.
Measuring tools like dial gages, stands and so on are required additionally.

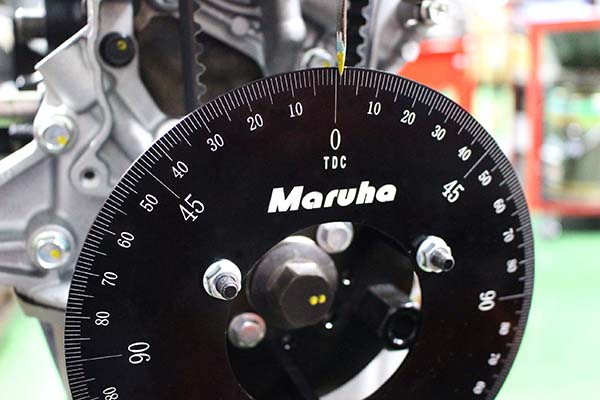

![メガネレンチなどを使ってクランクを固定し、センターボルトを緩めます。](img/mar23012605_5.jpg)

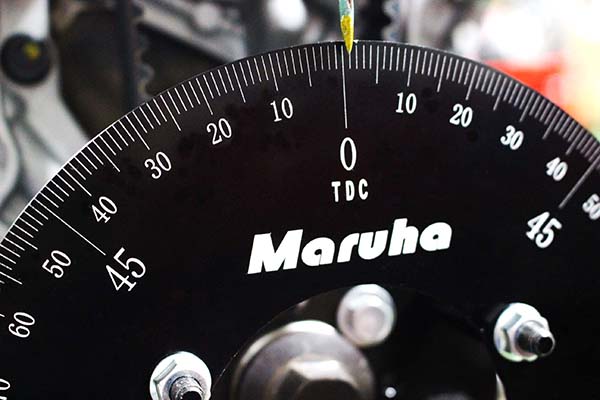

![メガネレンチなどを使ってクランクを固定し、センターボルトを緩めます。](img/mar23012605_6.jpg)
1.Outline
- Internal side:
The valve starts opening before and after the top dead center (TDC) position and closing before and after the bottom dead center position.Therefore, the divisions can be read as xxx degree just before the bottom dead center (BDC) position. - External side
The valve starts opening just before the bottom dead center position and closes before and after the top dead center position.Therefore, the divisions can be read as xxx degree just before the bottom dead center position.
By this measurement, the crank angle with opening the valve is measured, and adjustment for the valve timing located at the center position should be done with using the slide camshaft pulley.
For more information, please click
“ Let’s think about valve timing!”
2.How to fix
By using three female threads, the included stud bolts are fixed.
Then, the scale plate should be fixed by the included nuts.
3.Product-specific sale
For your repairing, the included stud bolts can be sold separately.
![SST(専用特殊工具):クランク ロックプレート](img/mar23012606.jpg)
![SST(専用特殊工具):クランク ロックプレート](img/mar23012606_2.jpg)
![SST(専用特殊工具):クランク ロックプレート](img/mar23012606_3.jpg)

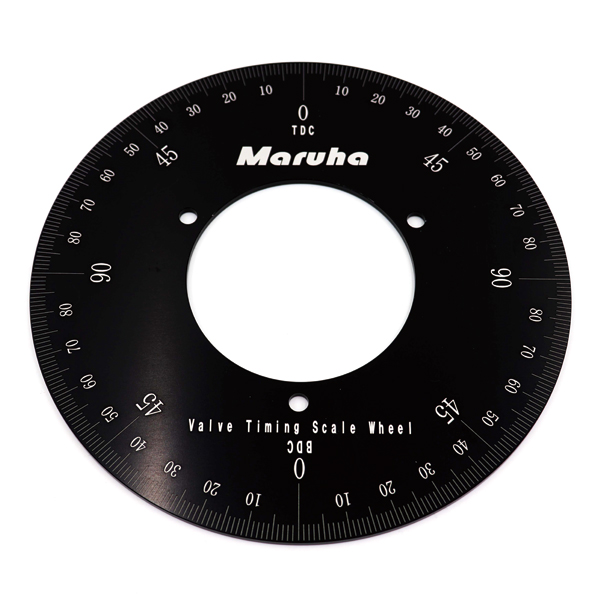

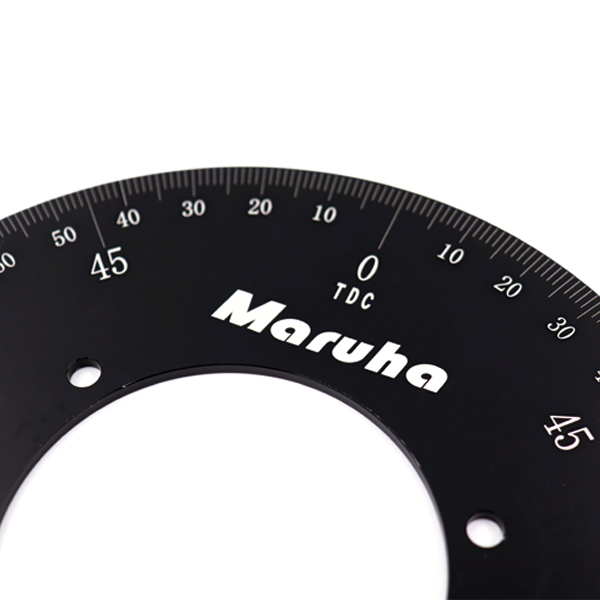

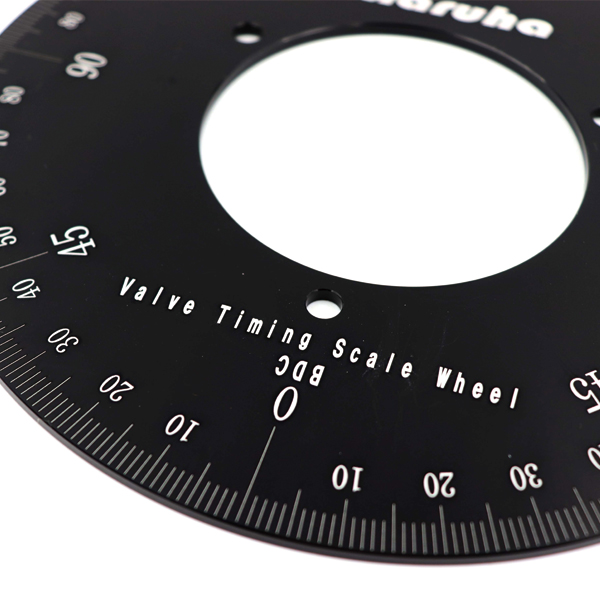

特殊工具 SST クランク スケール(360°分度器)
code:mar23012606
¥12,100(¥11,000)
![単品販売](img/mar23012607.jpg)

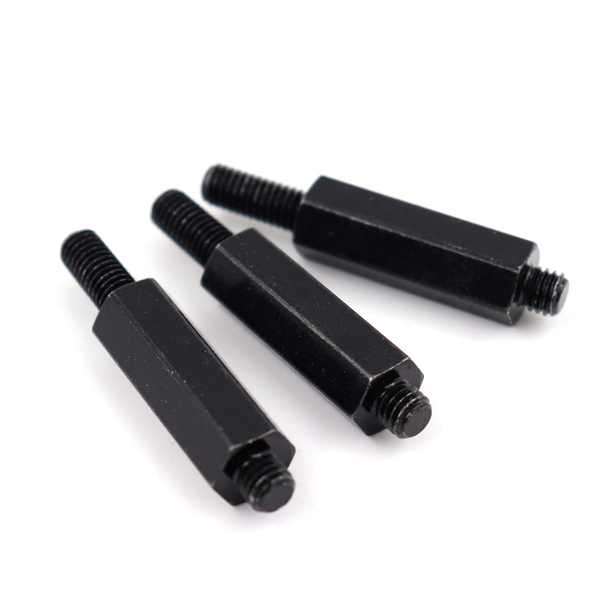

特殊工具 SST スタッドボルト(3本セット)
code:mar23012607
¥2,200(¥2,000)
